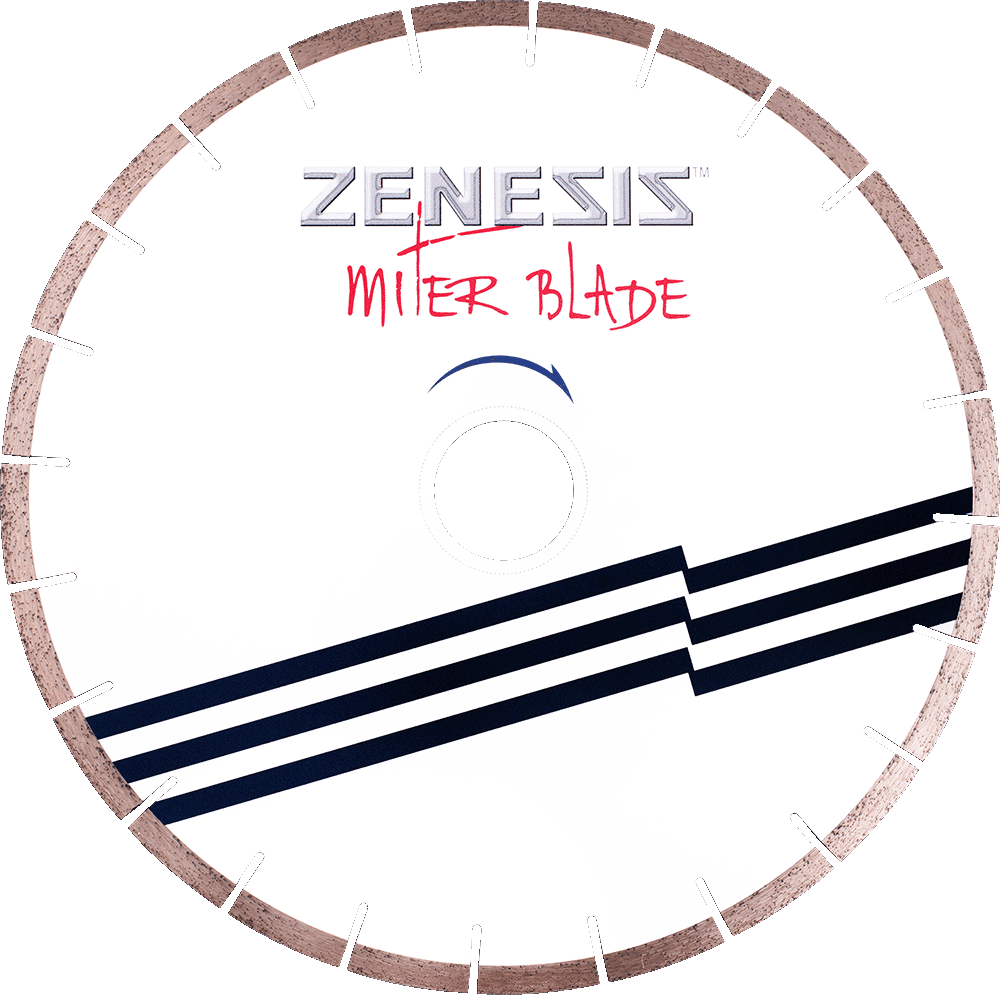

ZENESIS™ ZSGO MITER

Bridge Saw Blade

  • Bridge Saw
  • Wet

• 10mm segment to maximize life and minimize segment loss

• Strong core to minimize flexing

• Engineered bond for chip-free cuts to leave an invisible seam



The ZENESIS™ MITER blade is specifically designed to deal with the added side stress put on blades when miter cutting. Most mega segment (over 20mm) blades are designed only for straight cutting. The added downward pressure put on these blades while miter cutting can cause flexing at the weld and premature tension loss in the core. Our 10mm segments do not flex at the weld, which makes it the straightest cutting miter blade on the market.



Highest quality metal matrix and pattern diamond technology give long life to the shorter segment, making it ideal for both miter and straight cuts. No more need to change blades to get accurate razor-sharp miters! The segments are precisely brazed onto an extra heavy-duty silent core to prevent flexing in the core and premature core failure.

Application:

  • All Natural Stone
  • Granite

Dimensions:

Part No.DiameterSegmentArbor Size
ZMI20V10T1412T14"10mm60/50mm
ZMI20V10T1612T16"10mm60/50mm

Bridge Saw Blade Max RPM

We recommend using bridge saw blades within the specified RPM range for optimal performance on different materials. For detailed recommendations, download our RPM Chart.
