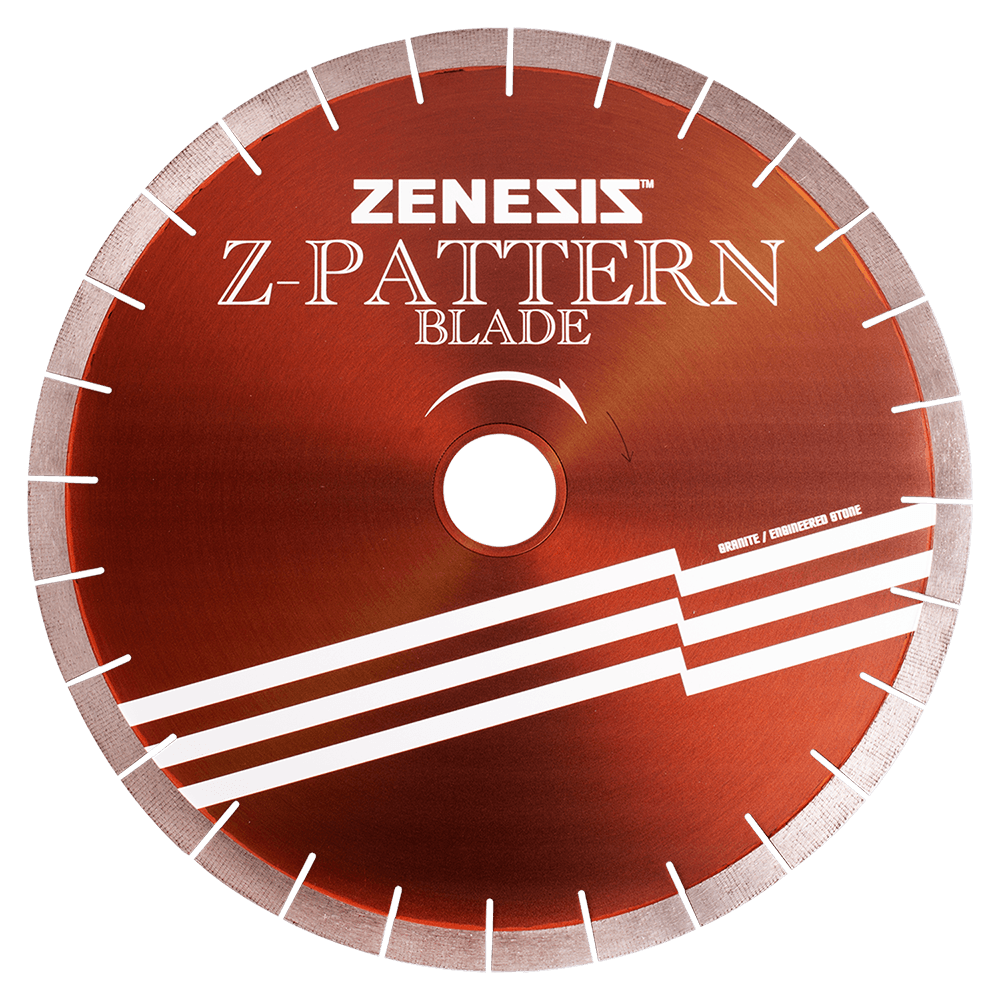

ZENESIS™ ZESG Z-Pattern
Bridge Saw Blade
- Bridge Saw
- Wet
• 18mm (.708”) segment height
• Available with unique ZENESISTM pattern diamond technology
• Straight and miter cutting
• Best blade for CNC and ROBO saws
• Performed reliably at feed rates 5-10 feet per minute
The ZENESIS™ Z‐PATTERN bridge saw blade is recommended for production shops utilizing CNC and robotic stone saws. These new technology saws require speed, accuracy and clean cuts. The 18mm pattern diamond segments are specifically designed to run faster and straighter under extreme production conditions. This high-performing blade has been expertly developed for wet use only on granite and engineered stone and is proven to perform reliably at feed rates 5-10 feet per minute. Can be used on quartzite at feed rates 1-4 feet per minute.
Application:
- Engineered Stone
- Granite
Dimensions:
| Part No. | Diameter | Segment | Arbor Size |
|---|---|---|---|
| ZESG20V18T1212T | 12" | 18mm | 60/50mm |
| ZESG20V18T1412T | 14" | 18mm | 60/50mm |
| ZESG20V18T1612T | 16" | 18mm | 60/50mm |
| ZESG20V18T1814T | 18" | 18mm | 60/50mm |
| ZESG20V18T2014T | 20" | 18mm | 60/50mm |
Bridge Saw Blade Max RPM
We recommend using bridge saw blades within the specified RPM range for optimal performance on different materials. For detailed recommendations, download our RPM Chart.
