SB10SR B BSL

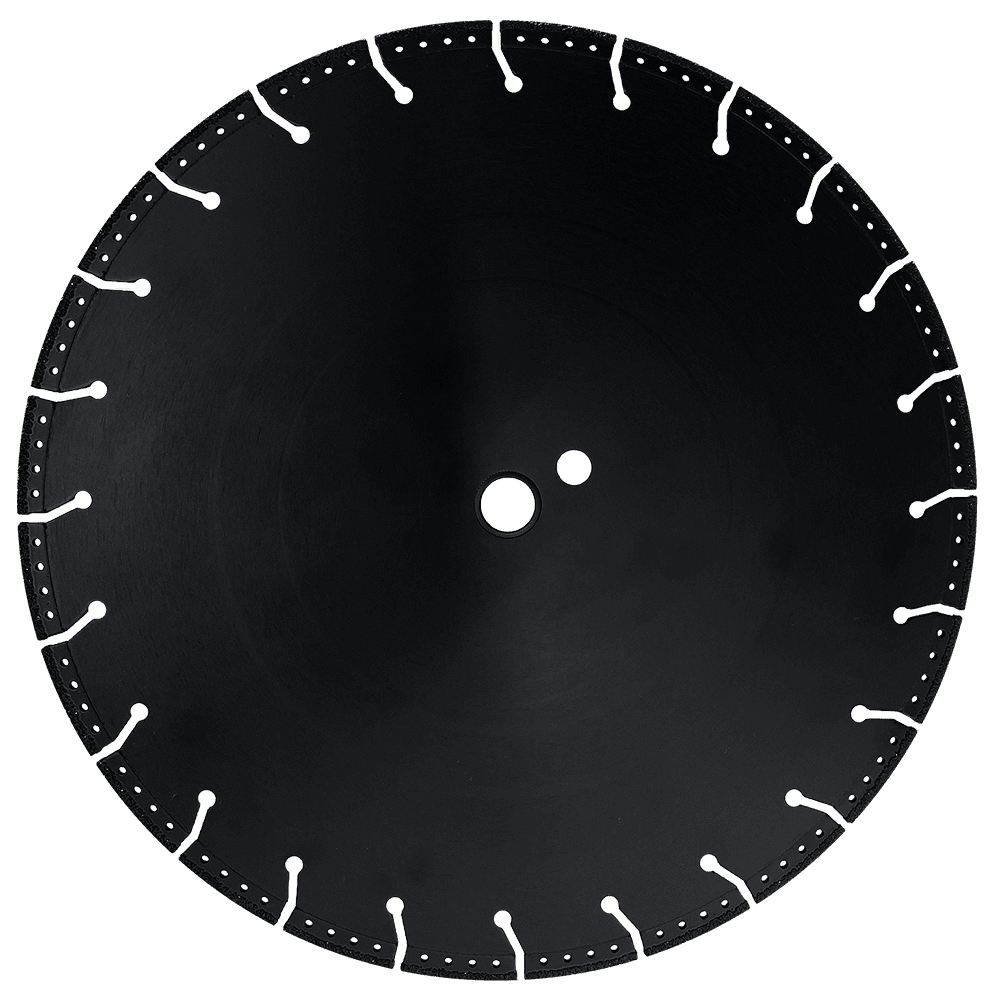

Premium Metal Cutting Blade
- Angle Grinder Large
- Angle Grinder Small
- Circular Saw
- DRY
- High Speed Saw
- Laser Welded
- Low HP Walk Behind
- Table Saw
- Wet
• Brazed Single Layer diamond blade (BSL)
• 12″ and above are laser welded
Application:
- Cast Iron
- Ductile Iron Pipe
- PVC Pipe
- Reinforced Concrete
- Steel
Dimensions:
| Diameter | Specification |
|---|---|
| 4* | .110 x 7/8-5/8 |
| 4.5* | .110 x 7/8-5/8 |
| 5* | .110 x 7/8-5/8 |
| 6* | .125 x U/A-7/8-5/8 |
| 7* | .125 x U/A-7/8-5/8 |
| 8* | .125 x U/A-7/8-5/8 |
| 9* | .125 x U/A-7/8-5/8 |
| 10* | .125 x U/A-7/8-5/8 |
| 12* | .142 x 20mm |
| 12* | .142 x 1-20mm w/ ph |
| 14* | .142 x 20mm |
| 14* | .142 x 1-20mm w/ ph |
| 16 | .142 x 20mm |
| 16* | .142 x 1-20mm w/ ph |
| 18 | .145 x 1-20mm w/ ph |
| 20 | .155 x 1-20mm w/ ph |
| 20 | .187 x 1-20mm w/ ph |
| 24 | .145 x 1-20mm w/ ph |
*normally stock item.
Steel Cutting Guidelines
While these blades can cut steel, they were not designed for heavy steel-cutting applications. For demanding metal-working applications, please inquire with our sales staff about metal application blades.
